Filtering and Sorting Grids

Overview

In the screens in Khaos Control Cloud it is possible to filter for information and sort information in the grids.

Usage

Sorting the grid

By clicking on the column heading you can sort ascending (one click - first picture) and descending (two clicks - second picture):



To filter for information in a grid

Filter the grid

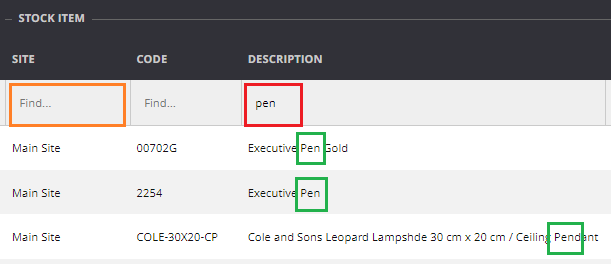

You can filter the grid by entering information in the top of the column (orange/red) as below, with the results in green:


Filter Button

  1. Click on the   button.
    1. Note that there is a 1 in a white circle. This shows that one filter is on already.
  2. The popup will appear and show you all the different filters available in the grid.
  3. Find the filter you want to use.
  4. Toggle the filter to green to turn the filter on.
  5. Click on the  button at the bottom of the popup.
  6. The filter button will show the number of active filters and the grid will be filtered with the information that matches your filters.

The toggles:

There are three toggle states although only the first two are normally used:
 this means the toggle is not active, it is off.
 this means the toggle is active, it is on.

Tri-State Toggle

A tri-state toggle that has three different options:
  ignore this filter.
 this means the toggle is not active, it is off.
 this means the toggle is active, it is on.

An example of a tri-state toggle is Show Dropship Items:
  ignore this filter.
  See all items that are not dropship.
 See all items that are just dropship.
